2-tonne Forestry Trailer, Package 9

The package includes: 4.2 m crane, 2-lever valve block, wheel drive, articulated steering, KG09 grapple.

Read more
Find your dealer in the link at the top of the page, click on ”FIND YOUR DEALER”
Product no. 21-SV20.1200

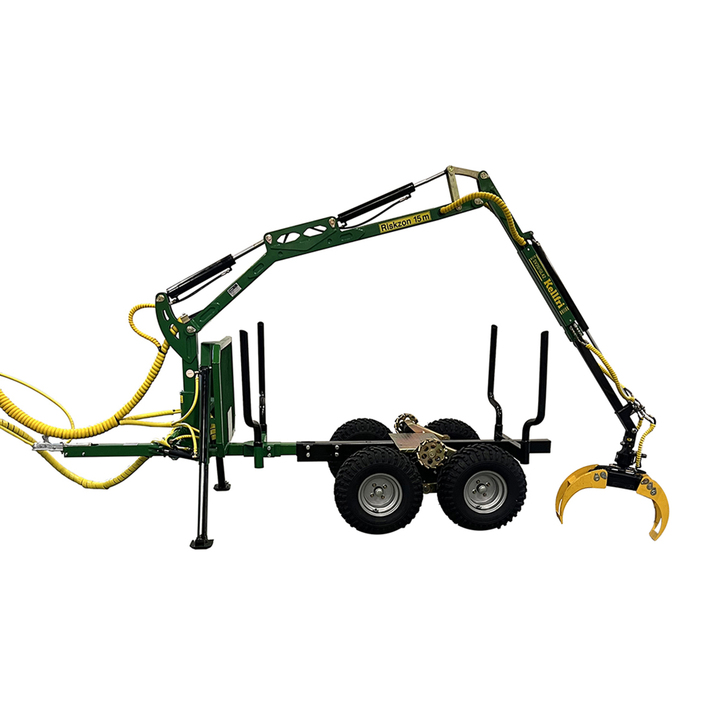

2-tonne ATV forestry trailer with 4.2 m crane

Forestry trailer package 9 includes:

• 4.2 m crane

• 2-lever valve block

• Wheel drive

• Articulated steering

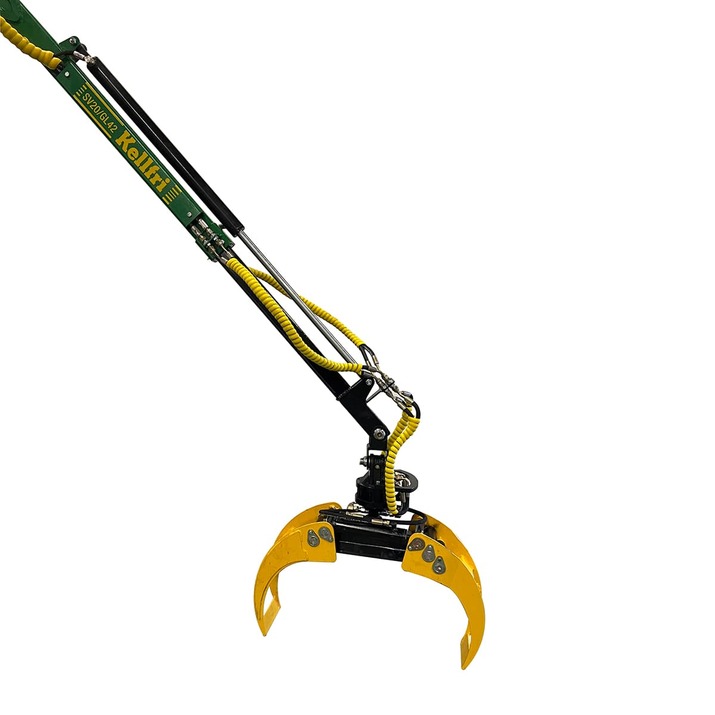

• Grapple KG09

• Rotator KR03

See and compare all our 2-tonne packages here

Kellfri’s forestry trailers for ATVs have:

• 9 hp petrol engine
• Terrain-friendly bogie
• High ground clearance
• Stable frame makes it easy to pull the trailer

9 hp petrol engine provides the trailer with the power it needs, crane with superior movement pattern and strength. Wheel drive via rollers on the well-treaded tyres, terrain-friendly bogie and good ground clearance. Rotatable 50 mm ball coupling for your safety, flexible and simple engagement and disengagement as well as high loading capacity makes this trailer both safe and reliable.

Hydraulic stabilisers mean that the trailer remains stable during loading and unloading. All hydraulics and hoses are built in and guarded to minimise the risk of external damage. The forestry trailer is supplied with yellow crane protection.



Horizontally adjustable bogie for adaptation to different lengths of timber and thus also adjustment of the pressure on the ball hitch on the ATV. This is very important, as too much pressure can damage your ATV and a negative pressure makes the rig unstable and dangerous.

Wheel drive and articulated steering

The forestry trailer has wheel drive via rollers on the well-treaded tyres. The wheel drive substantially increases accessibility and makes it easier to get around in the forest and past difficult areas.

A forestry trailer with articulated steering provides better responsiveness in confined areas and easily follows the ATV’s wheel tracks.
