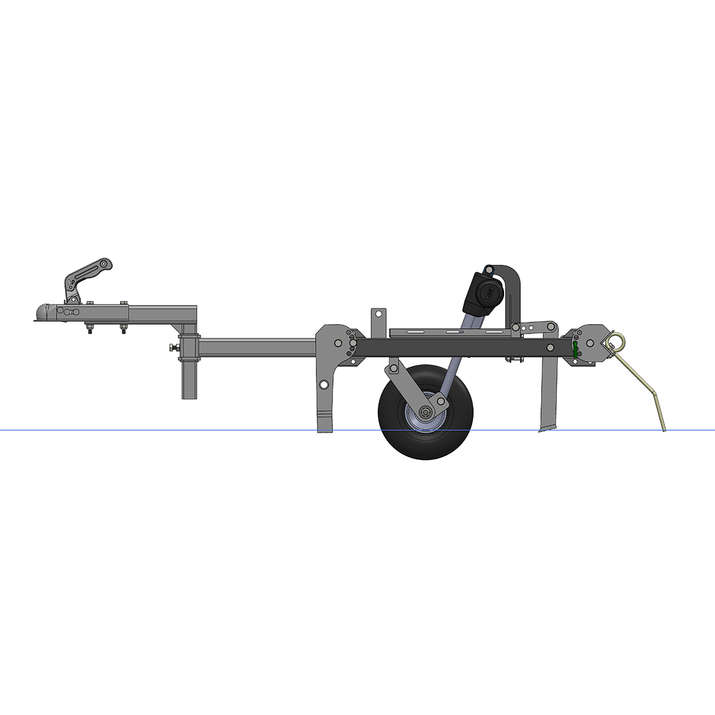

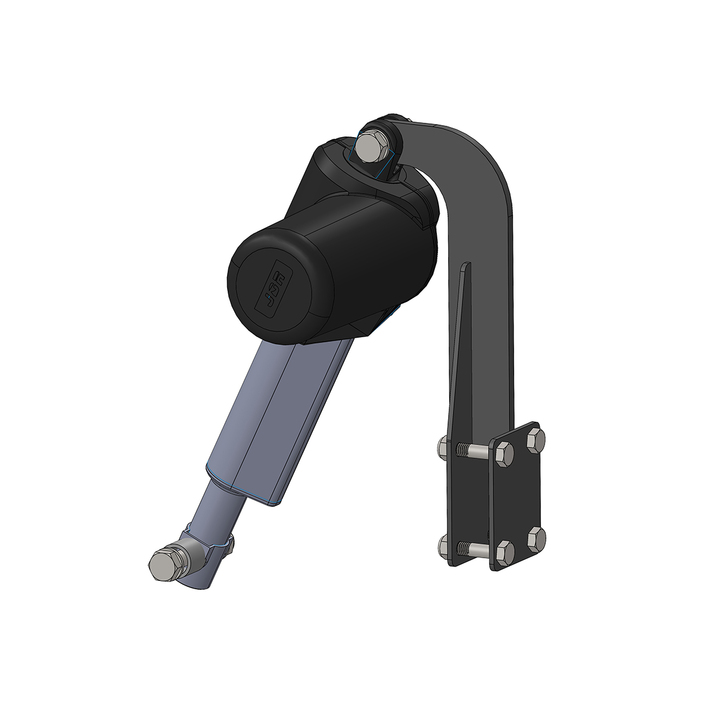

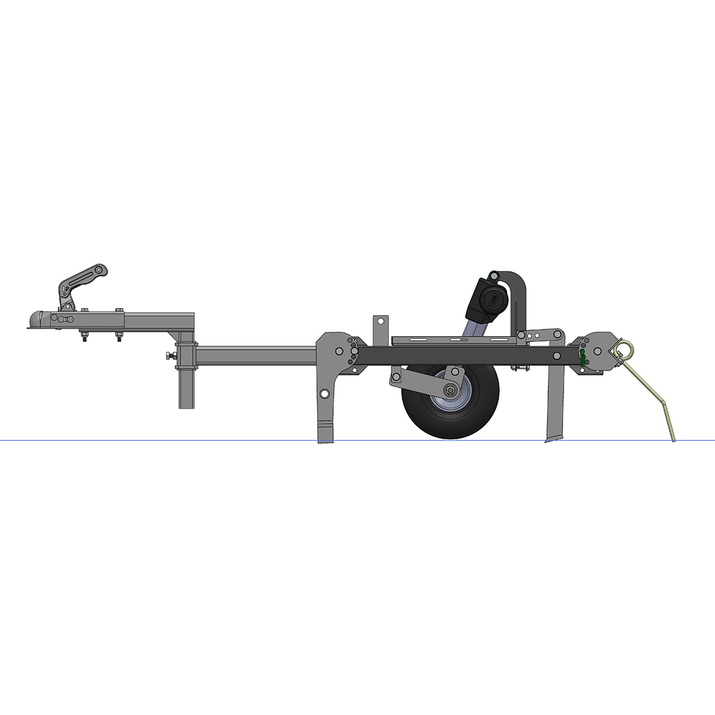

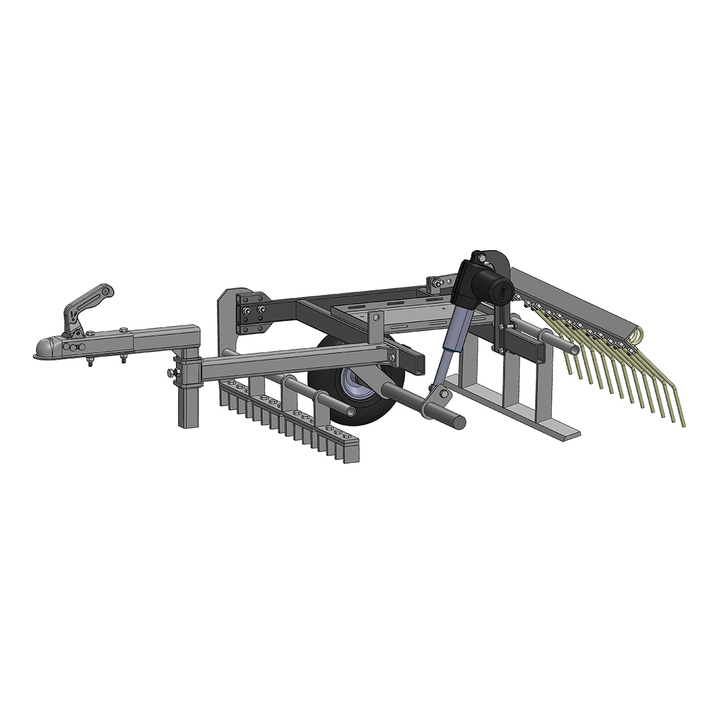

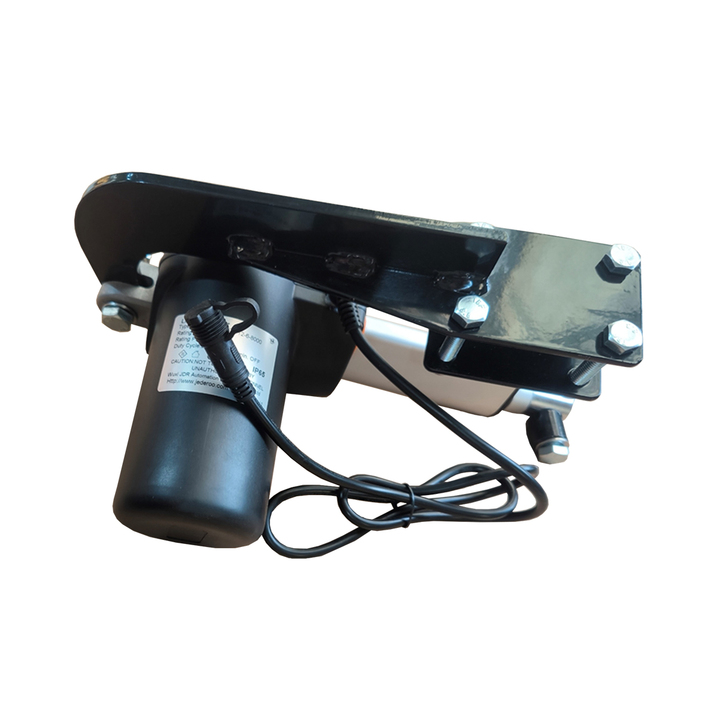

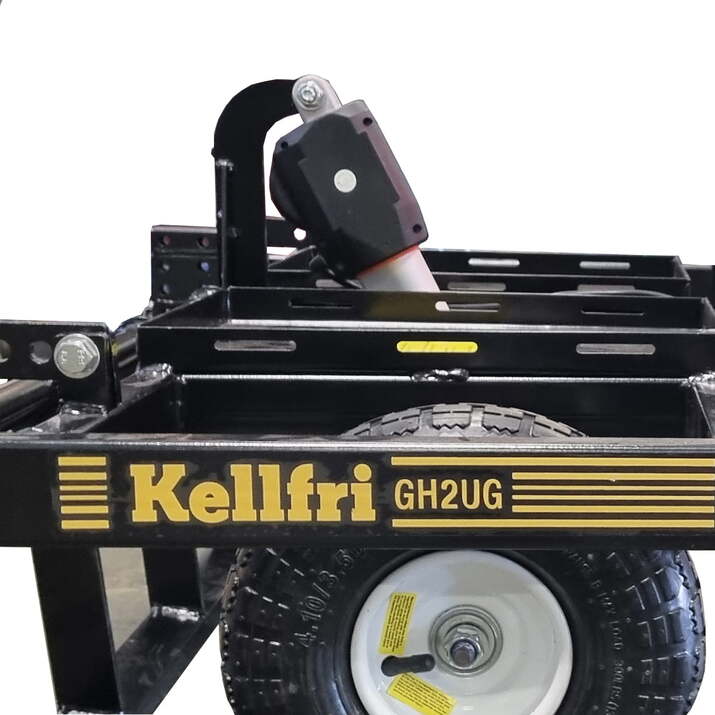

Electric cylinder for ATV Yard harrow GH2UG
Raise and lower the grader directly from the driver’s seat at the touch of a button.
Electric cylinder for GH2UG ATV grader – convenient height adjustment directly from the ATV
• Easy raising and lowering
• Adjust from the driver's seat
• Precise height control
• Installation without modification
• Connects directly to the ATV battery
With this electric cylinder for the GH2UG ATV grader, you can easily raise and lower the grader directly from the driver's seat at the touch of a button. There is no need for inconvenient manual adjustment, allowing you to work more efficiently, especially on larger gravel areas or uneven ground. The electric cylinder provides precise control of the grader height, making it easy to adapt the work to the surface and achieve an even, professional result. It also makes it easier to reverse into corners and work close to edges, as you can quickly raise or lower the grader when needed.

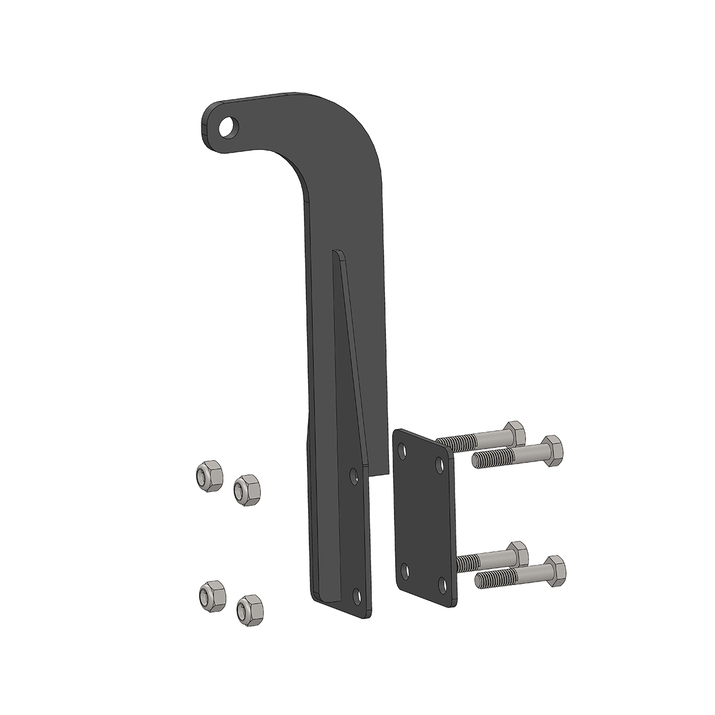

Installation is simple and requires no modifications to the grader. The bracket and bolts are included and mount directly onto the existing frame. The robust construction is designed to withstand demanding outdoor conditions and repeated use. At the same time, the electric cylinder reduces physical strain as there is no longer any need to adjust the grader manually.
The electric cylinder connects directly to the ATV battery

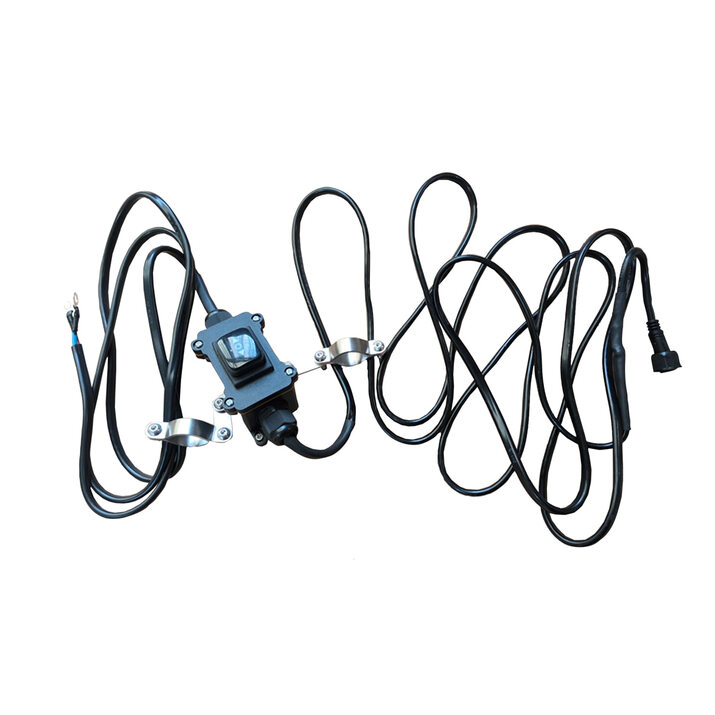

The electric cylinder connects directly to the ATV battery and is operated using the included switch and wiring mounted on the handlebars. The included 3-metre extension cable provides flexible installation, and the power cable can easily be disconnected from the battery when using other attachments.
Technical information for the electric cylinder for ATV grader
Voltage: 12 V
Power: 55 W
Duty cycle: 2 minutes
Protection class: IP65
Weight: 5 kg
Extension cable: 3 metres
Installation dimension: 275 mm
Stroke length: 100 mm
