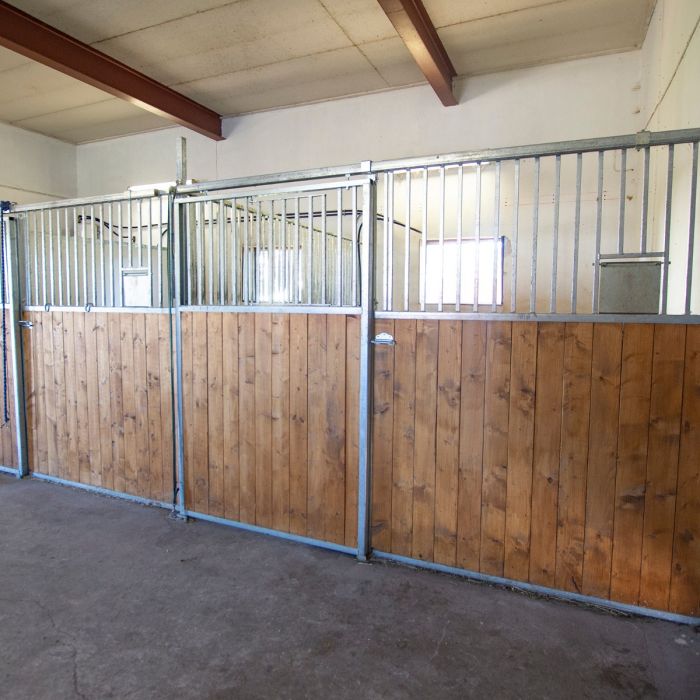

Front with 3.0 m sliding door, including pine panelling, SWE

Swedish-made front for horse box with dimension 3.0 m, incl. pine panelling.

Front for horse box, dimension 3.0 m, incl. pine panelling

• Front with sliding door is 300 cm wide, total height 220 cm

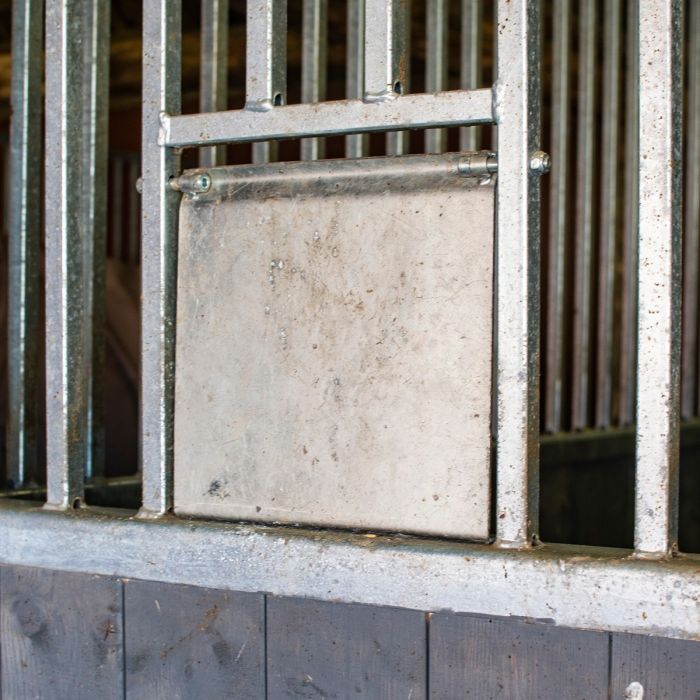

• Openable and removable hatch on the box door
• Feeding flap on the box door
• The upper grille section is galvanised
• The pine panelling has 120 mm effective building width, thickness 41 mm
• The square bars are 20 x 20 mm ø with 70 mm distance between them
• The box opening (passage dimensions) is 125 x 220 cm
• The lock for the box door is easy to open by hand
• The panelling height is 138 cm high at the front
• 1 x floor profile (U-profile) 40 x 53 x 40 x 3 mm included

Swedish-made front with grille of square piping, which is stronger than tubular piping and gives the horse box a stylish appearance.

The well thought-out design means that it is not necessary to buy any fittings, all fixing points are welded in place for direct mounting on wall or corner post.

As standard the front has a sliding door, a feeding flap and an openable/removable hatch where the horse can stick its head out.

The front is supplied with uncut and untreated pine panelling.

If the 3.0 metre length does not fit then it is easy to shorten the front to the required dimension and drill new holes for the brackets.

Click here for more on front for horse box, 3.0 metre with plastic panelling.

It is also possible to customise the front according to the dimensions you require. Contact your nearest dealer for further information.

Read more
Find your dealer in the link at the top of the page, click on ”FIND YOUR DEALER”
Product no. 28-HBF300GP.SV
